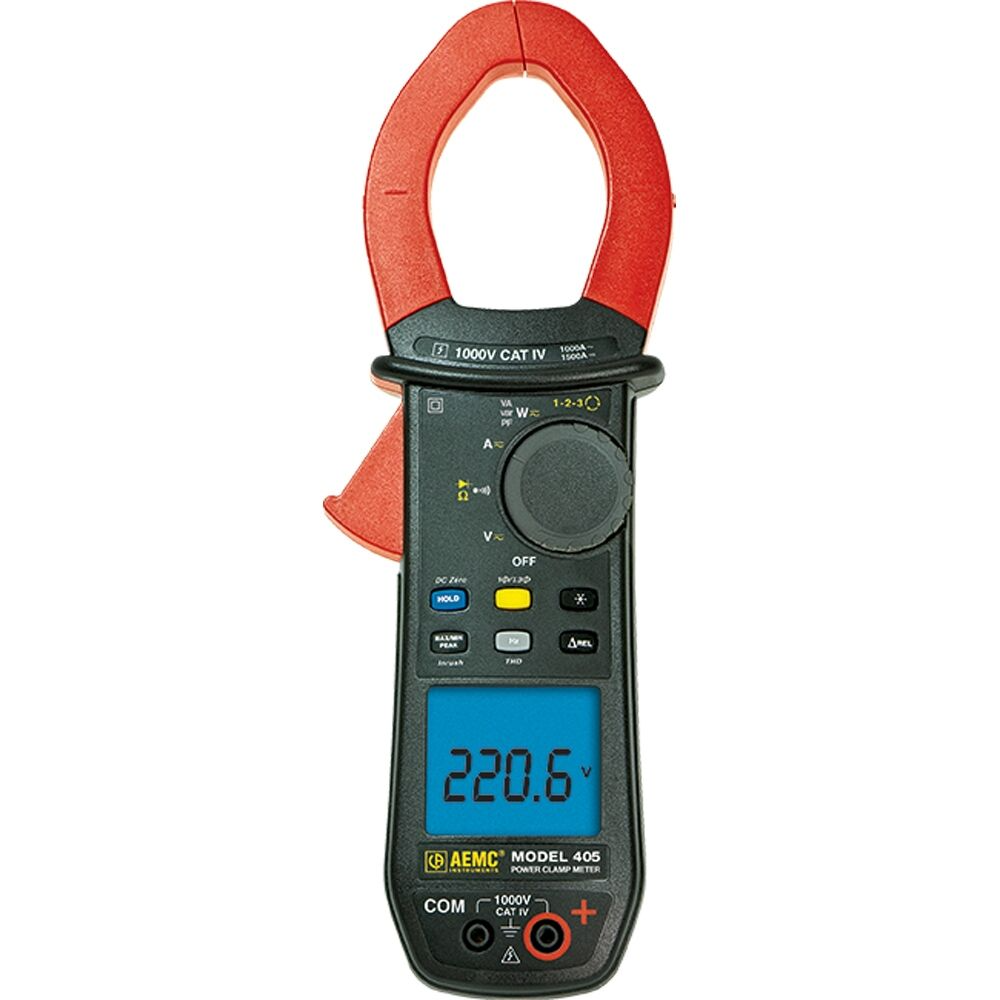

AEMC Instruments 405 Power Clamp-on Meter, TRMS, 1000VAC/DC

Liên hệ

1000V CAT IV Rated
UL 94 flame retardant self-extinguishing IP54 Rated
10,000-count blue electroluminescent backlit display
Measures up to 1000VAC (1400V peak), 1000VDC and AC+DC with resolution to 10mV
Measures up to 1000AAC and 1500ADC
Measures single- and three-phase power (real, reactive and apparent) up to 3MW with resolution to 1W
Measures frequency to 20kHz with 0.1Hz resolution
Auto selects AC or DC measurement
Measures AC+DC volts, amps and power
True InRush current measurement with 1mS capture
Measures THDr and THDf
Detects and displays phase rotation
Delta relative function for tracking deviation from reference values
Tracks Min/Max values
Jaw opening up to 1.89″
Leads are constructed with a flexible silicone material
