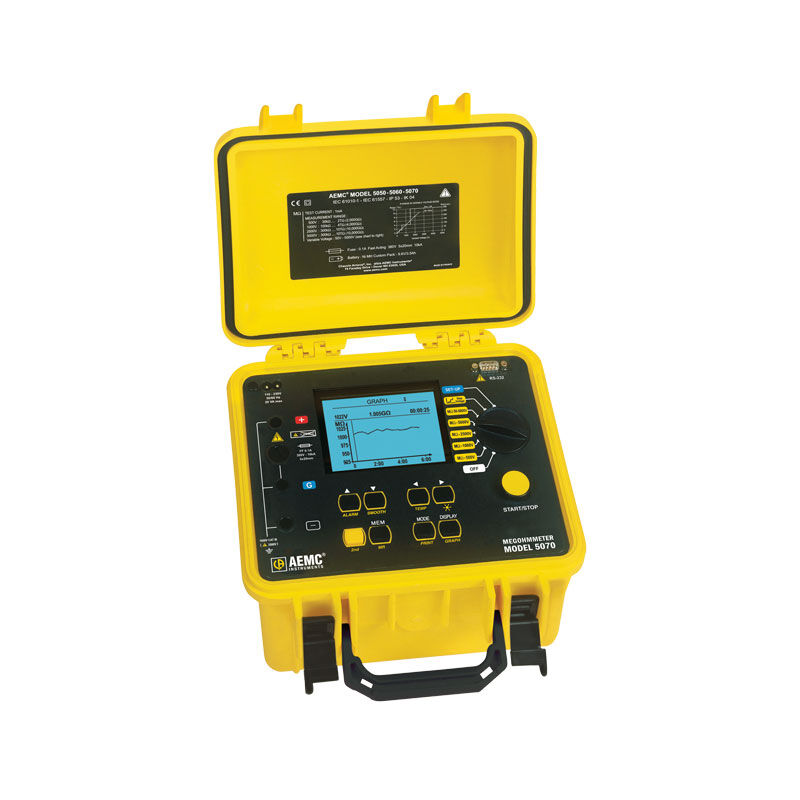

The Megohmmeter Model 5070 is a fully automated 5000V graphical insulation tester. This True Megohmmeter® features selectable and programmable test voltage (40 to 5100V) and programmable temperature correction of resistance readings. The Model 5070 is the only megohmmeter to offer both a graphical plot of the test right on the instrument, as well as a digital presentation of the test results. It has a large graphic display with five line alphanumeric display and graph. It also offers the ability to program up to three step voltage profiles, each containing up to five steps. The Model 5070 has an RS-232 port which provides the ability to configure the unit and run the test from a PC. Test results can be generated directly to a printer using the DataView® graphing and analysis software.

• True Megohmmeter®
• Test voltage selections of (500, 1000, 2500, and 5000) V
• Insulation measurements from 10 kΩ to 10,000 GΩ (10 TΩ)
• Selectable and programmable test voltage (40 to 5100) V
• Automatic calculation of DAR, PI and DD ratios
• Calculations of Step Voltage through front panel
• Direct measurement and display of capacitance and leakage current
• Display resistance, test voltage and run time
• Programmable test run times and PI ratio times
• Smooth and Alarm functions
• Automatic test inhibition (if live sample > (3, 10, or 20) % of test voltage)
• Automatic discharge and display of discharge voltage
• Graphic and digital display of test voltage, resistance and more
• Bright blue electroluminescent backlight
• Programmable temperature compensation
• Programmable test voltage lock-out
• Programmable alarm setting
• Auto Power OFF when not in use
• AC or DC powered with rechargeable NiMH battery pack – run while charging
• Rugged, water-resistant field case
