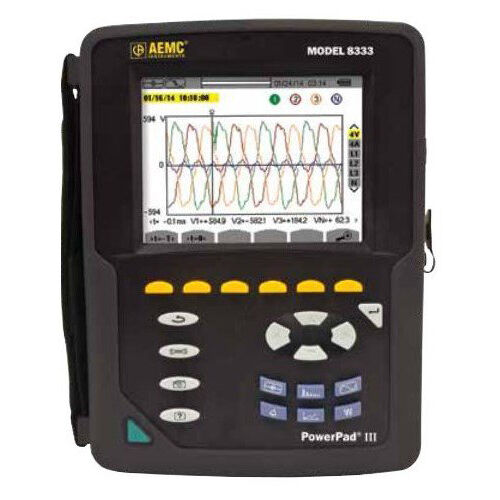

AEMC Instruments 8333 PowerPadIII Power Quality Analyzer Kit

Liên hệ

True RMS Single-, Two- and Three-PhaseMeasurements at 256 Samples/Cycle, Plus DC
Real-Time Color Waveforms
Easy-to-Use On-Screen Setup
Automatic Current Probe Recognition and Scaling
True RMS Voltage and Current Measurement
Measures DC Volts, Amps and Power
Displays and Captures Voltage, Current and Power Harmonics to 50th Order, Including Direction, in Real-Time
Captures Transients Down to 1/256th of a Cycle
Stores Comprehensive Data Base of Logged Data
Phasor Diagram Display
VA, Var And W Per Phase and Total
kVAh, VARh and kWh Per Phase and Total
Neutral Current Calculated and Displayed for Three-Phase
Transformer K-Factor Display
Power Factor, Displacement PF Display
Captures Up to 51 Transients
Short and Long Term Flicker Display
Phase Unbalance (Current and Voltage)
Harmonic Distortion (Total and Individual) from 1st to 50th
Alarms, Surges and Sags
Screen Snapshot Function Captures Waveforms or Other Information on the Display
