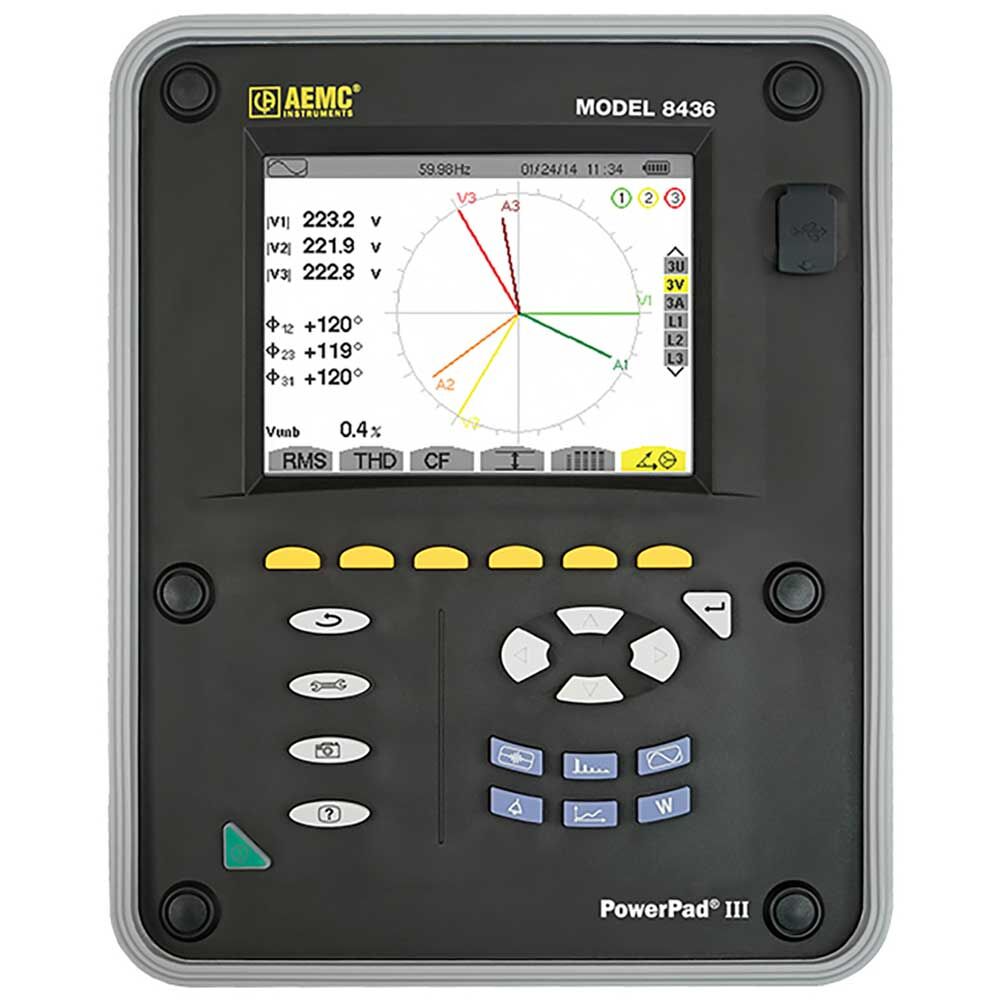

The PowerPad III Model 8436 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV. It is rated IP67 when used with the flexible sensor Ampflex 196A.

• Measurement of TRMS voltages up to 1000Vrms AC/DC for two-, three-, four- or five-wire systems
• Measurement of TRMS currents up to 10,000Arms (sensor dependent)
• 65?s sample rate
• Direct measurement of neutral current & voltage
• Record and display trend data as fast as once per second for one month for up to 25 variables
• Transient detection on all V and I inputs (up to 210)
• Selectable PT and CT ratios
• Inrush current measurement
• Calculation of Crest Factors for V and A
• Calculation of the K-Factor for transformers
• Calculation of short and long term flicker and three-phase voltage unbalance
• Measures harmonics (referenced to the fundamental or RMS value) for voltage, current or power, up to 50th harmonic
• Displays of harmonic sequencing and direction and calculation of overall harmonics
• Real-time display of phasor diagrams including values and phase angles
• Measurement of active, reactive and apparent power per phase and their respective sum total
• Calculation of power factor, displacement power factor and tangent factor
• Recording, time stamping and characterization of disturbance (swells, sags and interruptions, exceedance of power and harmonic thresholds)
• 2GB internal Trend Recording memory; Alarm, Snapshot and Transient/Inrush memories are separate
• Measurement of energy kVAh, kvarh & kWh
• The Max and Min RMS measurements are calculated every half-period
• Includes DataView® software for configuring, real-time display, analysis and report generation
