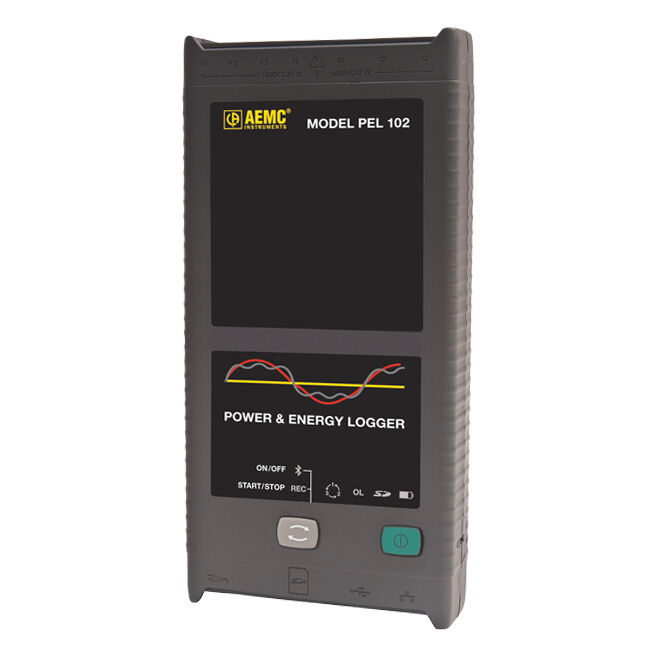

AEMC Instruments PEL102 Power & Energy Logger No LCD

Liên hệ

Measurement of RMS voltages and currents at 128 times per cycle and stored every second
Measurement of VA, W and var power values (total and per phase) stored every second
Measurement of VAh, Wh and varh energy values (total and per phase) per second with source/load indication
Calculation of the cos f Displacement Power Factor (DPF) and the Power Factor (PF) stored every second
Calculation of Total Harmonic Distortion (THD)
Measurement, calculation and display of the harmonics up to the 50th order for 50/60 Hz and 7th order for 400Hz
Measurement of the DC quantities (RMS calculation)
Electrical network quantities are stored on a removable SD-Card
Automatic recognition of the connected current sensors
DataView software for configuration, data retrieval and real-time viewing of measurements with a PC
Compact and rugged case
Versatile communication interface choices built in (USB, Ethernet, Bluetooth)
