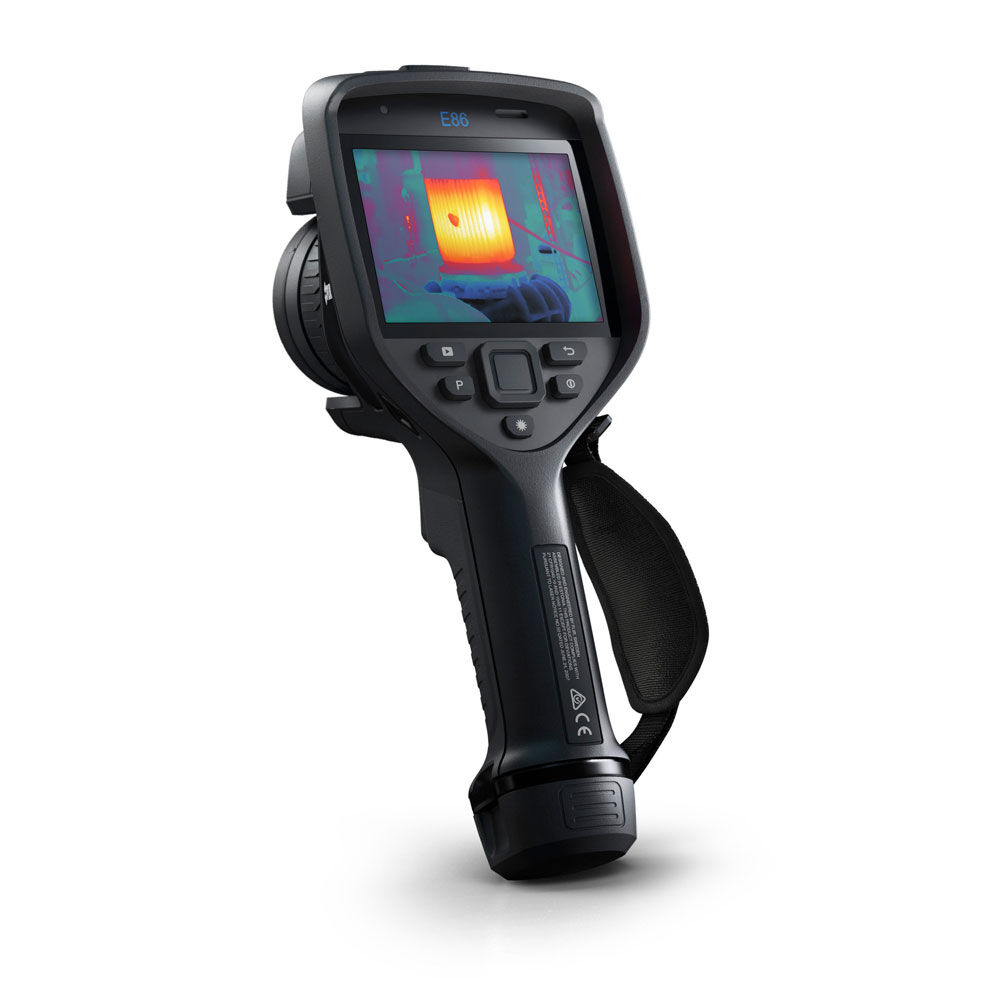

The FLIR E86 is packed with high-performance features needed for fast, accurate detection, and when paired with a FLIR FlexView™ dual field-of-view lens you can instantly switch from wide-area to telephoto scanning. This 464 × 348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E86 images directly from the camera to the cloud for easy, secure storage and sharing.

• IR Resolution: 464 × 348 pixels
• Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
• Accuracy: ±2°C (±3.6°F) or ±2% of the reading
• Digital Camera: 5 MP, with built-in LED photo/video lamp
• Display: 4″, 640 × 480 pixel touchscreen LCD with auto-rotation
• Storage Media: Removable SD card
• Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
• Detector Type and Pitch: Uncooled microbolometer, 17 µm
• Digital Camera: 5 MP, with built-in LED photo/video lamp
• Digital Zoom: 1-4× continuous
• f-number: 1.3
• Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
• Image Frequency: 30 Hz
• IR Resolution: 464 × 348 pixels
