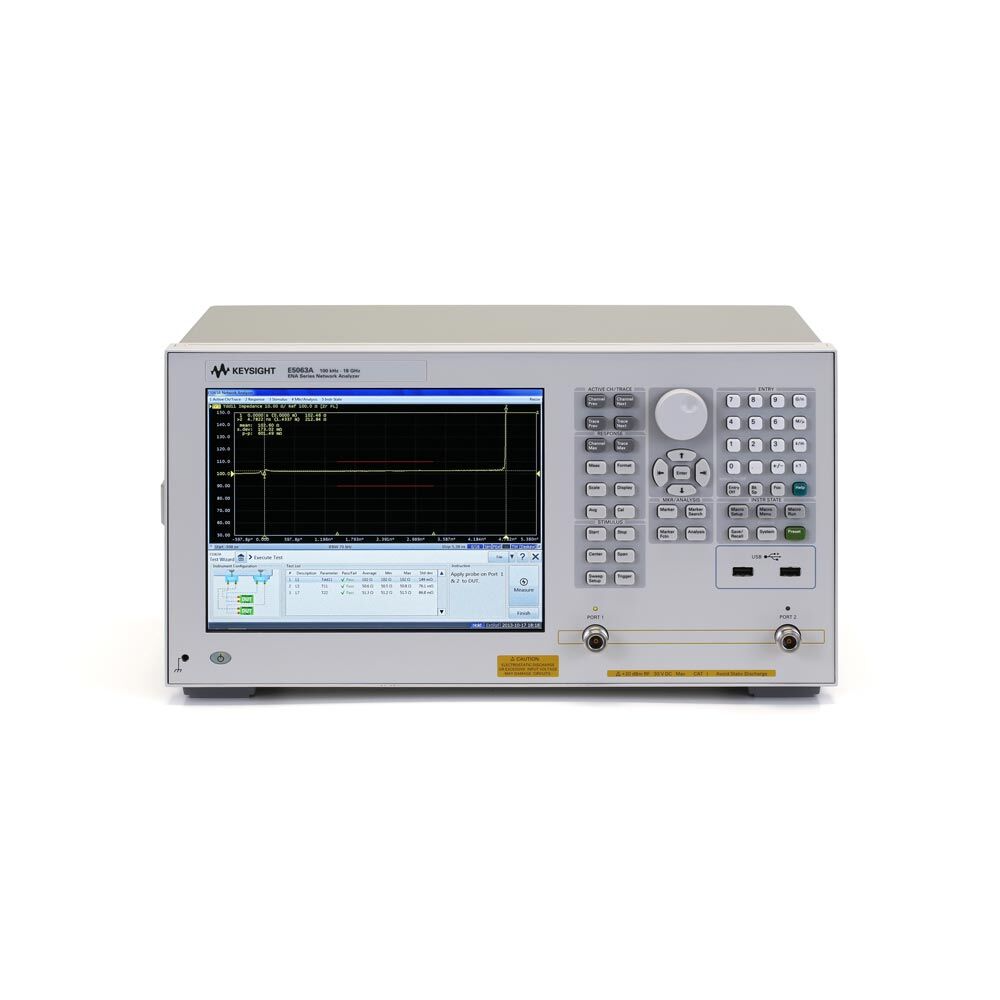

Keysight E5063A-285 ENA Series Network Analyzer 2-Port Test Set, 100kHz-8.5GHz

Liên hệ

Danh mục: Keysight, Thiết bị đo theo hãng Thẻ: 3d vina, hiệu chuẩn, hiệu chuẩn thiết bị, máy đo 2d, máy đo 3d, máy đo cmm, sửa máy đo 2d, sửa máy đo 3d, sửa máy đo cmm

Vận chuyển giao hàng toàn quốc
Phương thức thanh toán linh hoạt
Gọi ngay 034 841 8000 để mua và đặt hàng nhanh chóng

MÔ TẢ SẢN PHẨM

General-purpose RF network analyzers are essential for simple passive component measurements in education institutions and RF labs. The Keysight E5063A enables you to reduce your test equipment cost without sacrificing test quality

Frequency range: 100 kHz to 8.5 GHz
Low trace noise: 0.002 dBrms (Typical, at 8 MHz to 4.35 GHz, IFBW = 70 kHz, transmission measurement.)
Wide dynamic range: 122 dB (Typical, at 100 MHz to 4.35 GHz, IFBW = 10 Hz.)
High temperature stability: 0.01 dB/C (Typical, at 300 kHz to 6 GHz)
Test port – 2-port S-parameter, 50 ½, Type-N connectors
Sweep type – Linear and log frequency, Segment sweep
Calibration Capabilities: Short-Open-Load-Thru (SOLT), TRL, Unknown thru, Waveguide, ECal, Adapter removal/insertion
Analysis: Time domain / Test wizard, Wireless power transfer analysis (Optional), mixedmode S-parameters, test fixture de-embedding, pass/fail limit testing, Equation editor. Materials measurement (External software (N1500A) required.)
Upgradability: Frequency, software options
Connectivity: USB (6 ea), LAN, GPIB (Optional), 24-bit Handler I/O (Optional)
