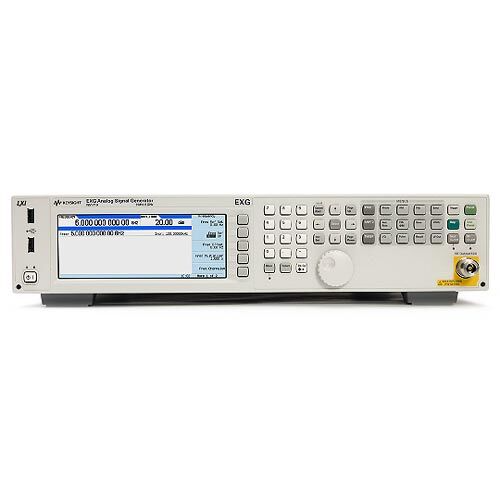

Keysight N5171B-501 Frequency Range, 9kHz to 1GHz
Liên hệ
- Vận chuyển giao hàng toàn quốc
- Phương thức thanh toán linh hoạt
- Gọi ngay 034 841 8000 để mua và đặt hàng nhanh chóng
MÔ TẢ SẢN PHẨM
- Achieve faster throughput and greater uptime with the cost-effective performance optimized for manufacturing test
- Perform basic parametric testing of components and functional verification of receivers with industry-leading output power
- Thoroughly verify receiver performance by simulating complex analog modulation scenarios with multi-function generator capability
- Minimize downtime and expenses with self-maintenance solutions and low-cost repairs
- Frequency: 9 kHz to 6 GHz
- Output Power @1 GHz: -144 dBm to +26 dBm
- Phase Noise @1 GHz: (20 kHz offset) -122 dBc/Hz
- Frequency Switching: ≤ 800 µs
- Harmonics @1 GHz: <-35 dBc
- IQ Modulation BW Internal/External: n/av
- Non-Harmonics @1 GHz: -72 dBc
- Sweep Mode: List, Step
- Software-General Purpose: AM, FM, PM, Pulse, Pulse Train Generator
- Software-Cellular/Wireless Connectivity: n/a
- Software-Audio/Video Broadcasting: n/a
- Software-Detection/Positioning/Tracking/Navigation: n/a
- Waveform Playback Memory: n/a
- Frequency Modulation-Maximum Deviation @1 GHz: 10 MHz
- Frequency Modulation-Rate @100 kHz Deviation: DC to 7 MHz
- Phase Modulation-Maximum Deviation in Normal Mode: 1.25 rad to 20 rad
- Phase Modulation-Maximum Deviation in High-BW Mode: 0.125 to 2 rad
- Amplitude Modulation-Maximum Depth: 100%
- Amplitude Modulation-Rate : 0 to 50 kHz
- Applications Available: Yes
- Analog: Yes
Baseband Generator Mode: n/a
