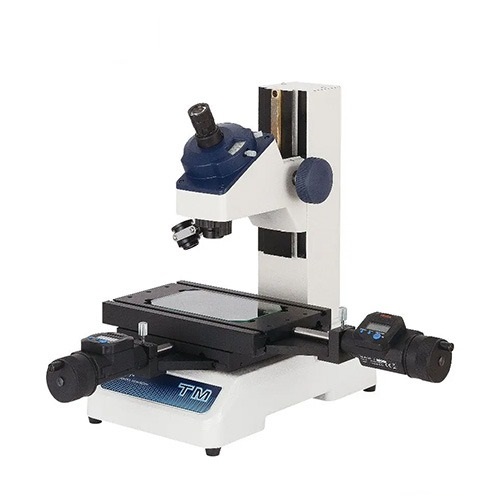

Kính hiển vi Toolmakers’ TM 505/510 Mitutoyo

Name: Kính hiển vi Toolmakers' TM 505/510 Mitutoyo
SKU: 12870
Availability: InStock

Liên hệ

Dòng TM là m?t Kính hi?n vi Toolmaker nh? g?n ?a n?ng có th? ???c l?p ??t trên b?t k? v? trí nào.

??c ?i?m n?i b?t

?èn chi?u sáng LED thi?t k? m?i giúp t?ng c??ng kh? n?ng quan sát ?? có ?? chính xác và ?? phân gi?i cao h?n.
Vi?c l?p ??t các ??u panme ?o k? thu?t s? tùy ch?n MHD-50MB (164-163) cho phép ?o k? thu?t s? d? dàng.
?èn chi?u sáng LED hình tròn tùy ch?n có s?n cho các ?ng d?ng yêu c?u chi?u sáng toàn di?n.
M?t thang ?o vernier ???c g?n bên ngoài th? kính cho phép ?o góc ??n gi?n.

M?u		TM-505B	TM-1005B
Mã ??t hàng		176-818	176-819
Optical tube		Monocular type (Vertical tilt angle: 30°)
Observation image		Erect
Eyepiece protractor		Resolution (graduation): 1°, Rotation angle: 360°, Resolution (angle): 6′, Adjustable zero point
Eyepiece		Standard accessory: 15X (field number: 13), Options: 10X, 20X
Objective lens		Standard accessory: 2X, Optional: 5X, 10X
Microscope head	Maximum height of workpiece	115 mm	107 mm
	Focusing method	Manual (Coarse feed)
Illumination unit	Transmitted illumination	Stepless brightness adjustment, White LED light source with green filter
	Reflected illumination	Oblique single-source type, Stepless brightness adjustment, White LED light source
Cross-travel stage	Measuring range	50×50 mm	100×50 mm (An optional 50 mm gauge block is required to cover full range. A CERA block is recommended.)
	Table size	152×152 mm	240×152 mm
	Usable area of the stage glass	96×96 mm	154×96 mm
	Maximum stage glass loading	5 kg
Linear measurement method		Micrometer head*
Resolution		Depends on the micrometer head specifications* (for 164-163: 0.001 mm)
Micrometer head travel range		For 164-163: 50 mm
Ngu?n ?i?n		AC100 to 240 V 50/60 Hz Maximum power consumption: 4.2 W
Tr?ng l??ng		14 kg	15 kg
